索拉开合帘电机类别：开合帘电机

产品简介：SOLA电机优势： 1、手电两用，手拉启动； 2、自动限位，软启动软停； 3、一键式安装； 4、根据窗户大小调节运行速度； 5、超静音，系统运行噪音不大于35Db； 6、水平拉力不小于8Kg，负重能力不小于80 Kg

在线咨询订购热线：400-6688-568

咨询客服，我们为您推荐适合你的电动窗帘！

产品介绍

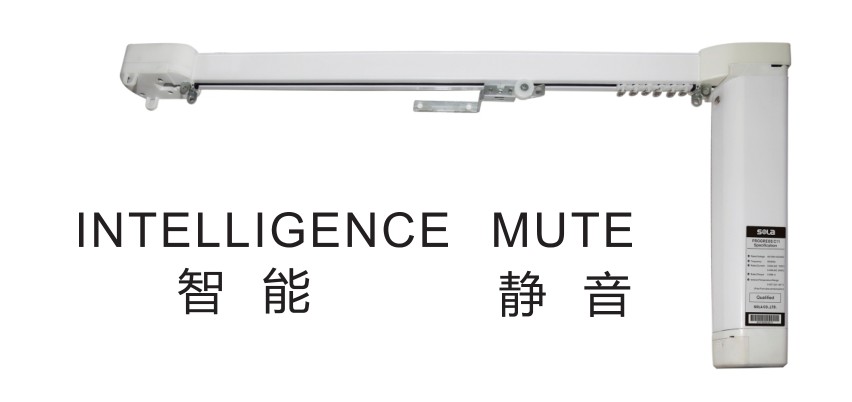

Curtain Motor

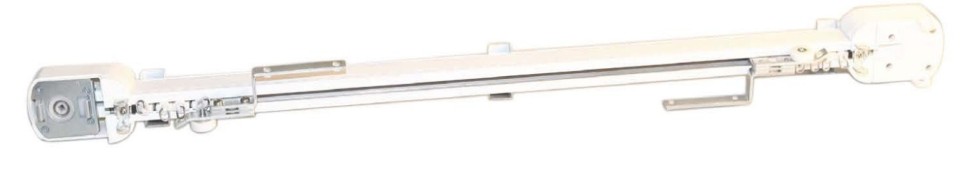

索拉开合帘电机

Advantages of SOLA motor:

1.Hand-draw operation and motor operation;
2.Automatic spacing, slow start operation;
3.One click installation, the motor can adjust the working speed by window size;
4. Adjust running speed by window size;
5.Mute, system running noise is not louder than 35Db;
6.Horizontal tension is not less than 8kg，loading capacity is not less than 80kg

SOLA电机优势：
1、手电两用，手拉启动；
2、自动限位，软启动软停；
3、一键式安装；
4、根据窗户大小调节运行速度；
5、超静音，系统运行噪音不大于35Db；
6、水平拉力不小于8Kg，负重能力不小于80 Kg

Advantages of control system

1. Perfectly compatibility

2. weak current power supply terminal

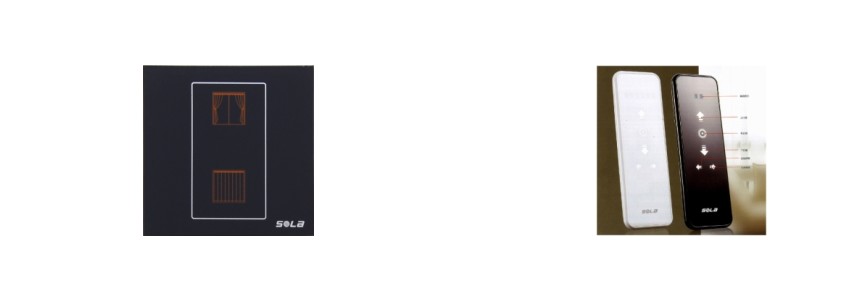

3. two kinds of smart control modes(wall switch and remote control)4. Stable and excellent performance to meet the needs of different environments5.100% imported original switch accessories

6. Co-gradient with smart home IOT systems, available to control any scene modes by mart

phone(such as iphone, Android system phone)and table PCs(such as ipad)

控制系统优势

1.兼容强

2.弱电供电终端

3.有墙面开关及遥控开关两种智能控制方式

4.以稳定优越的性能满足不同的环境使用需要

5.开关为的原装进口配套产品

6.与物联网智能化家居系统同步，可通过智能手机(如 phone手机、安卓系统手机等)及平板电脑(如ipad)控制任何场景

Advantages of SoLA rail

1. Motor rail is used acid proof aluminum material with electrolytic aluminum surface avoiding oxidation

2. Curved Installation of straight-shaped, L-shaped. U-shaped. S-shaped etc, can meet different locations and different instructions of installation.

3. Double layers of rail design, pulley layer and transmission system la

4. The rail adopts stainless steel to connect seamlessly, Cross lead block is made of 3mm stainless steelplate and SU PVC+ stainless steel transmission layer.

5. SUS430 stainless steel rings, 100% original hard polyethylene resin material pulleys

6. The installation code adopts galvanized anti-corrosion stainless steel and import stainless steel screws

7. Transmission back-supporting wheel is stainless steel bead copper wheel, no deformation, noaging, hard wear and tear making the wheel more smooth

8. The inner layer is adopted high strength expansion precision steel, point to point connecting rail,100% of balance

SOLA导轨：
1.耐酸铝材料，表面为电解铝涂装，无氧化问题；
2.直行、L型、U型、S型等弯弧型安装，满足不同位置不同结构的安装要求；
3.滑轮层及传动系统履带双层设计；
4.不锈钢托无缝连接，3mm厚定型不锈钢交叉引滑车，SU PVC+不锈钢丝传动履带；
5.SUS430不锈钢吊环，原生硬质聚乙烯树脂滑轮；
6.镀锌防锈钢吊环，进口不锈钢螺丝；
7.传动助力回轮轴为承加不锈钢珠铜质回轮，不变形，不易磨损，不老化，使回轮更顺滑；

8.内层采用膨胀高强度精工钢构件点对点接轨道中分连接，平衡效果。

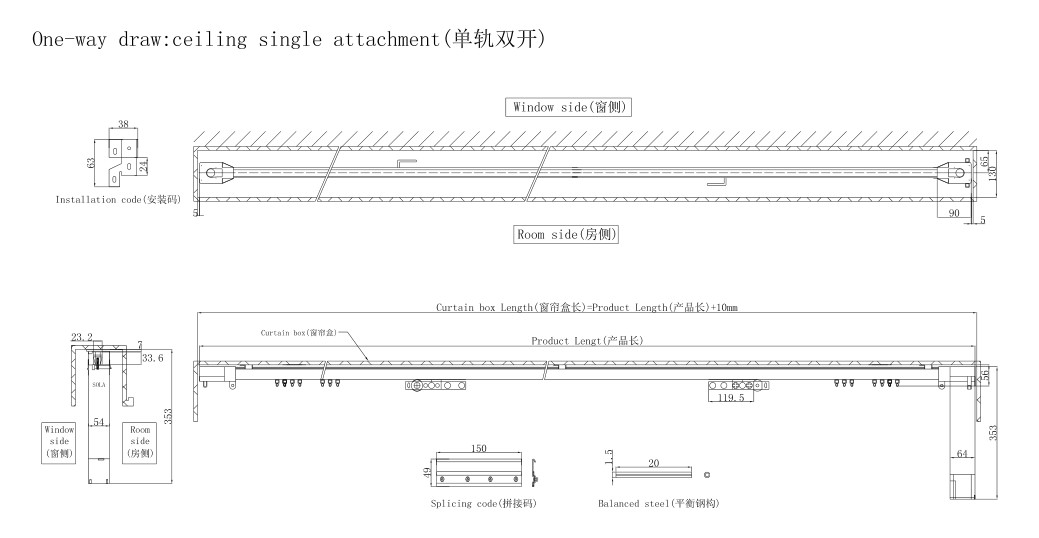

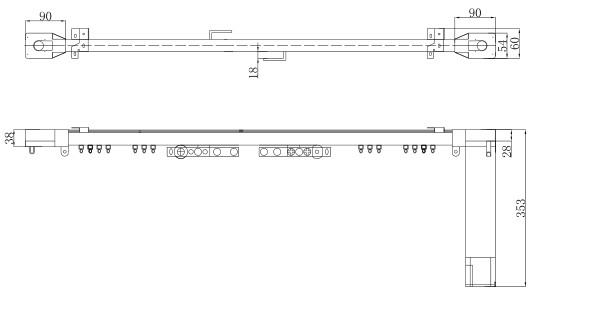

CURTAIN BOX PARTS:
MEASUREMENT: Beginning from curtain box when measuring the window Track dimension=dimension from curtain box and then subtracting 2cm or 3cm
CIRCUIT DESIGN: 3 core wires for single track and 3-6 core wires fordouble-track

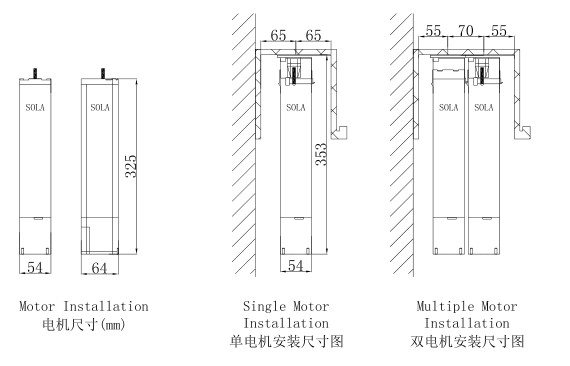

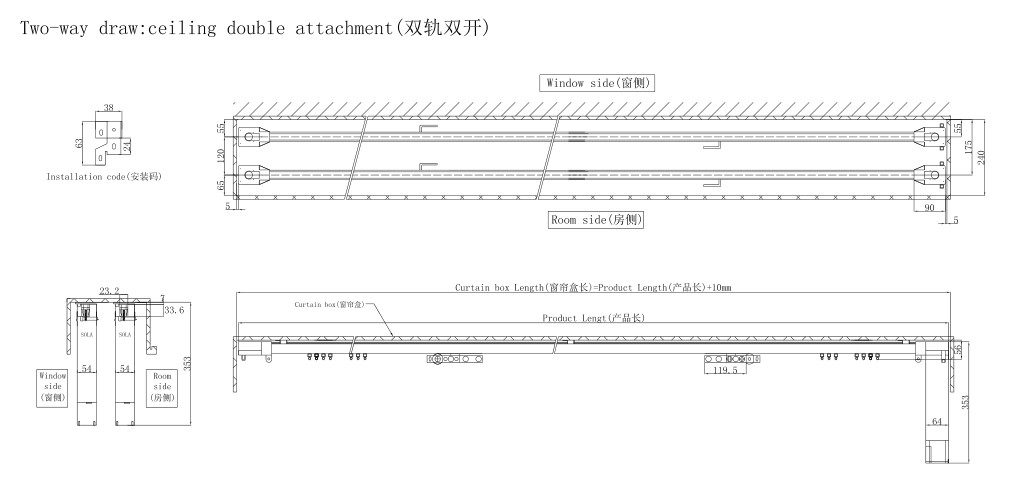

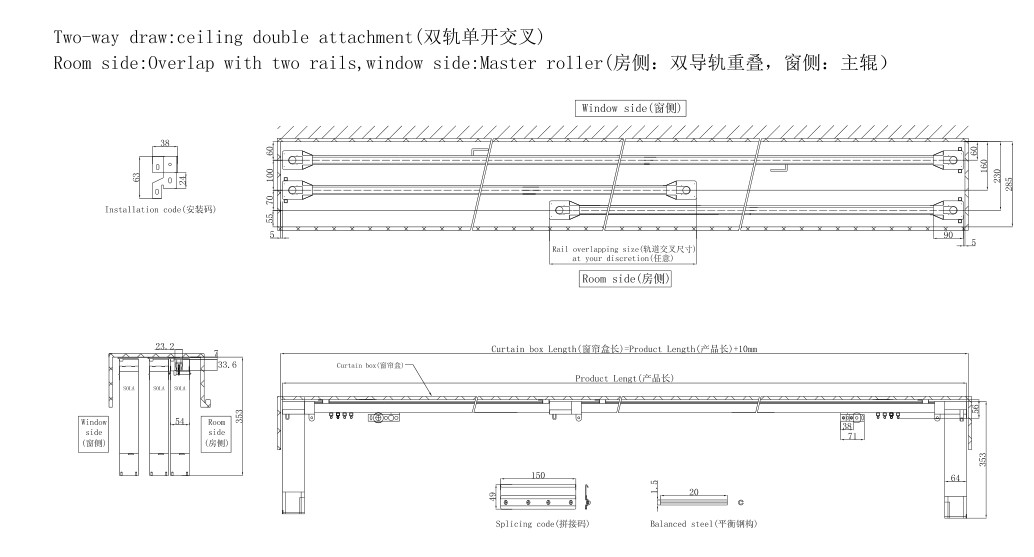

CURTAIN BOX: For electric curtain box, double-track> 22cm, minimum18cm;

single track >15cm, minimum 12cm

ATTACHMENT SURFACE: Cement facing or solid surface
MOUNTING: Roof-mounted wall mounted
CURVED PARTS

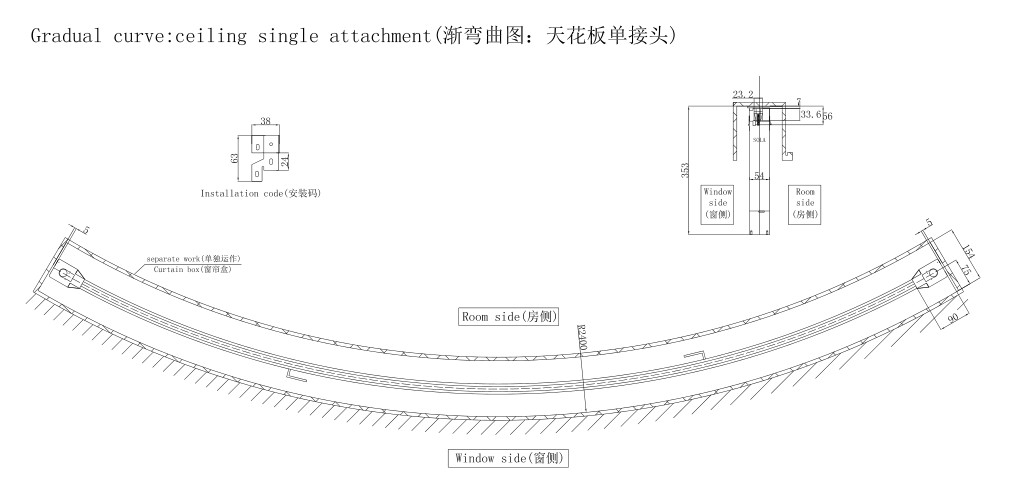

1. For regular curved (including S-shaped), arc length, chord length
and brace height are necessary and not a single one can be omitted
Arc length: Measuring the length and then making a mark in the centre
Chord length: Measuring the length and then making a mark in the centre
Brace height: Linking the two points together and measuring the
height, noting that be perpendicular to the chord length
Width of curtain box: Fox single track, the width> 10cm for double-track, the width> 18cm Generally, the motor should be fixed in the center of curtain box, in order to reduce the frictional force between the wall and fabric

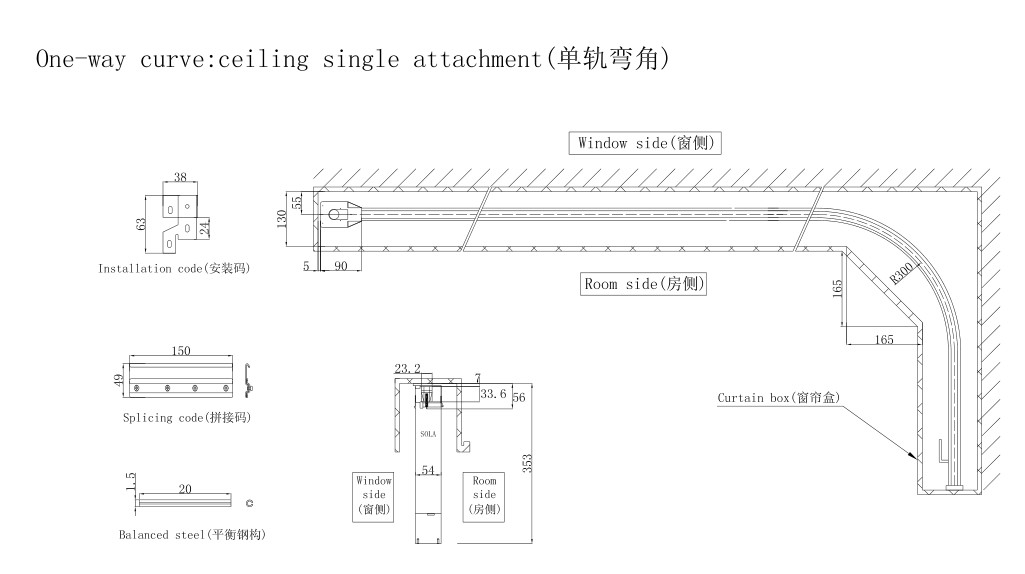

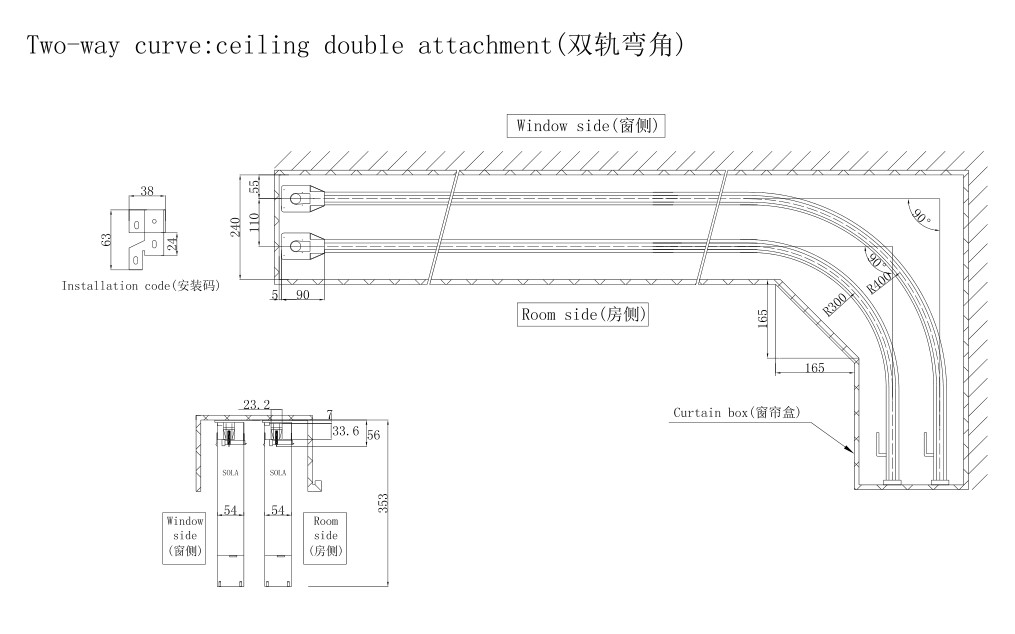

2. For right-angle bend(including L-shaped): for bay window or balcony with L-shaped right-angle beng, the width of curtain box is needed first, and the width complies to the minimum bending radius To 50cm bending radius, width of curtain box for single
track>30cm, for double-track>40cm. To 40cm bending radius, width of curtain box for single track >25cm, for double-track> 35cm.
3. Shaped curtain: refer to the drawing

窗帘盒部分：
测量：测量窗户尺寸时，须从窗帘盒测起，轨道的尺寸=从窗帘盒测起的尺寸
2cm(或3cm)
电路设计：单轨3芯线，双轨3-6线
窗帘盒：电动窗府盒双轨合理为>22cm，小极限为18cm，单轨为>15cm
小极限为12cm
安装平面的选择：水泥平面或较牢固的平面
安装方式：顶装式，墙侧式

弧形帘部分：
1.规则的弧形帘（包括S形）
严格需要三个参数，弧长、弦长和弦高，缺一不可。
弦长：测量时先顺着弯狐量出弧长，并在中点做标识；
弦高：以上两个中点连线成弦高，注意垂直于弦长。
窗帘盒宽度：窗帘盒单轨宽度大于10cm，双轨宽度大于18cm，一般按照都以窗帘盒居中来安装，这样减少墙身与布的摩擦。
2.直角弯（包括L形）
不少飘窗或阳台呈L形直角弯，这种情况下一般客户首先要求我们提供窗帘盒宽度，视小折弯半径而定。50cm折弯半径下，单轨窗帘盒宽度为30cm，双轨必须考虑40cm，40cm折弯半径下，单轨为25cm，双轨必须考虑35cm。
3.异形帘:取纸膜。
